Bucket Elevator Belt Joint Clamp

Bucket Elevator Belt Joint Clamp (Splicing Clamp)

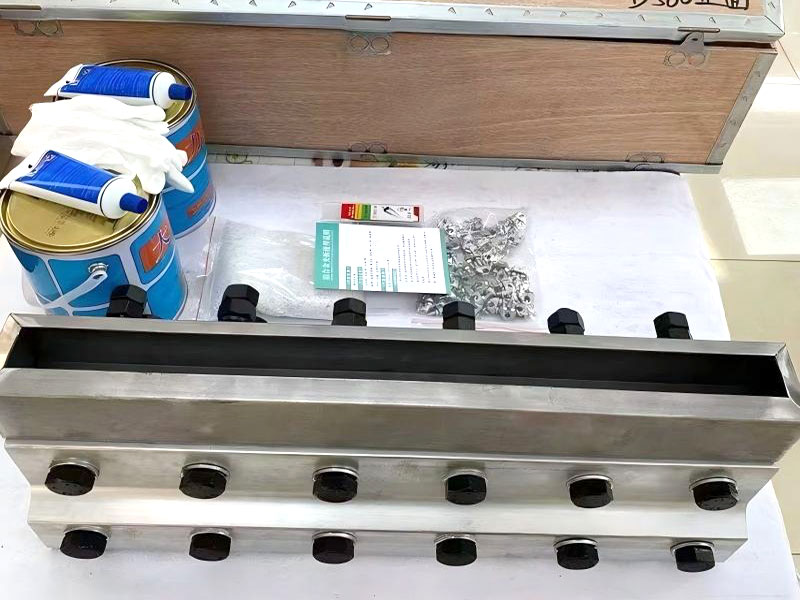

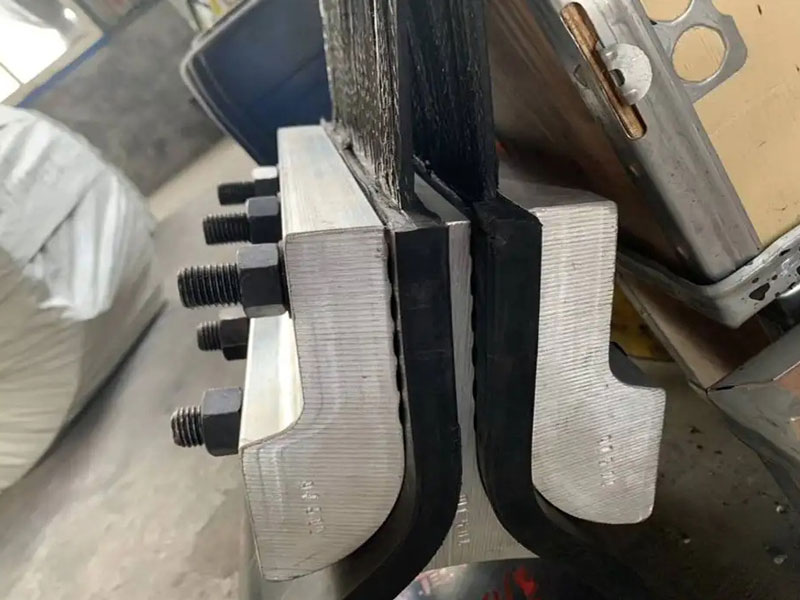

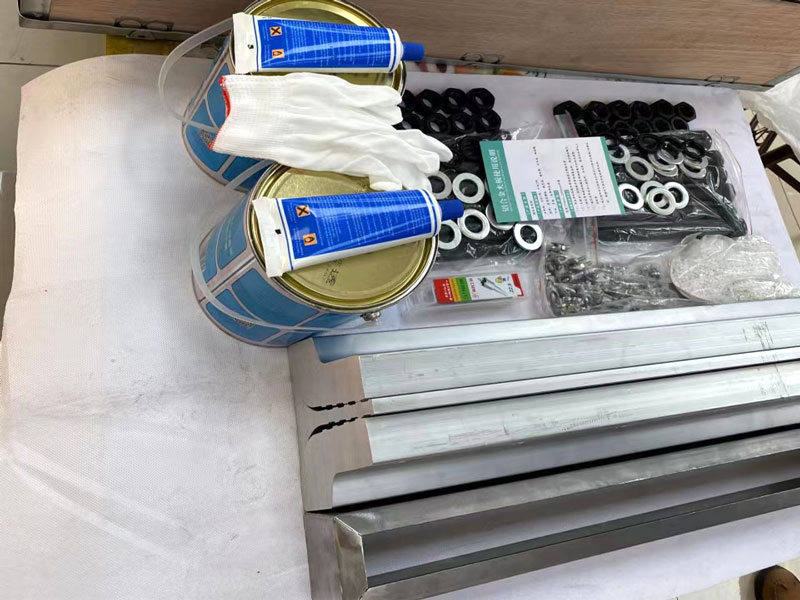

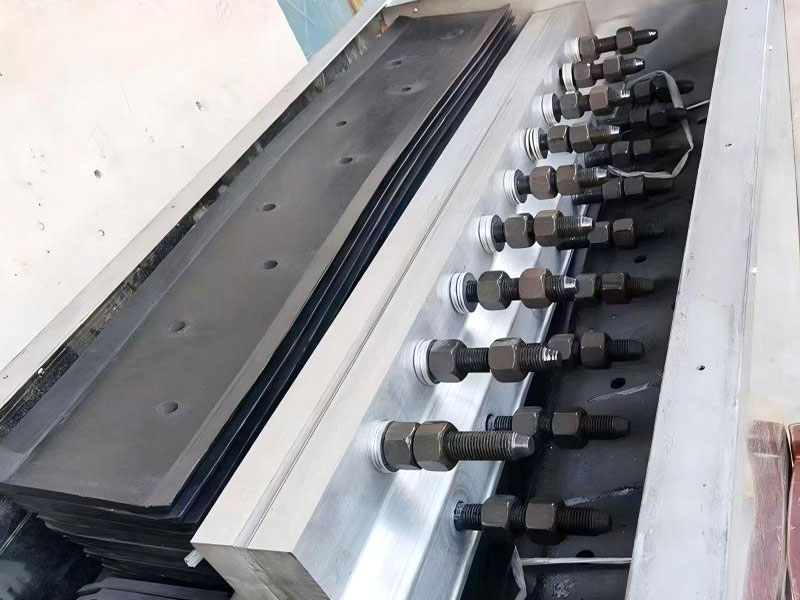

The Bucket Elevator Belt Joint Clamp is a specialized tool used to align, secure, and apply pressure to conveyor belt ends during the splicing process. It is essential for installing, repairing, or replacing elevator belts in bucket elevator systems, ensuring a strong, durable, and smooth joint.

Key Features & Functions:

1. Alignment & Fixation

– Holds belt ends precisely in position, preventing slippage or misalignment during splicing.

– Ensures proper overlap and seam accuracy for optimal joint strength.

2. Pressure Application

– Applies uniform pressure across the joint area, critical for vulcanization or adhesive curing.

– Some clamps integrate with heating systems for thermosetting repairs.

3. Modular & Adjustable Design

– Often modular to accommodate different belt widths and thicknesses.

– Adjustable tension mechanisms allow customized pressure based on belt material.

4. Portability & Ease of Use

– Lightweight and portable for on-site maintenance.

– Designed for quick setup, reducing downtime during belt installation or repair.

Common Applications:

– Installation & Replacement: Joining new belt segments during initial setup or belt replacement.

– Repair & Maintenance: Fixing tears, splits, or worn sections in existing elevator belts.

– Splicing Methods: Compatible with both mechanical fasteners and vulcanized splicing techniques.

Advantages:

– Enhanced Joint Integrity: Produces robust, seamless joints that minimize stress concentrations.

– Operational Efficiency: Reduces splicing time and labor costs.

– Safety Improvement: Prevents belt misalignment or joint failure, reducing operational risks.

This tool is widely used in industries such as agriculture, mining, cement, and grain handling, where reliable bucket elevator operation is crucial for material transport.
